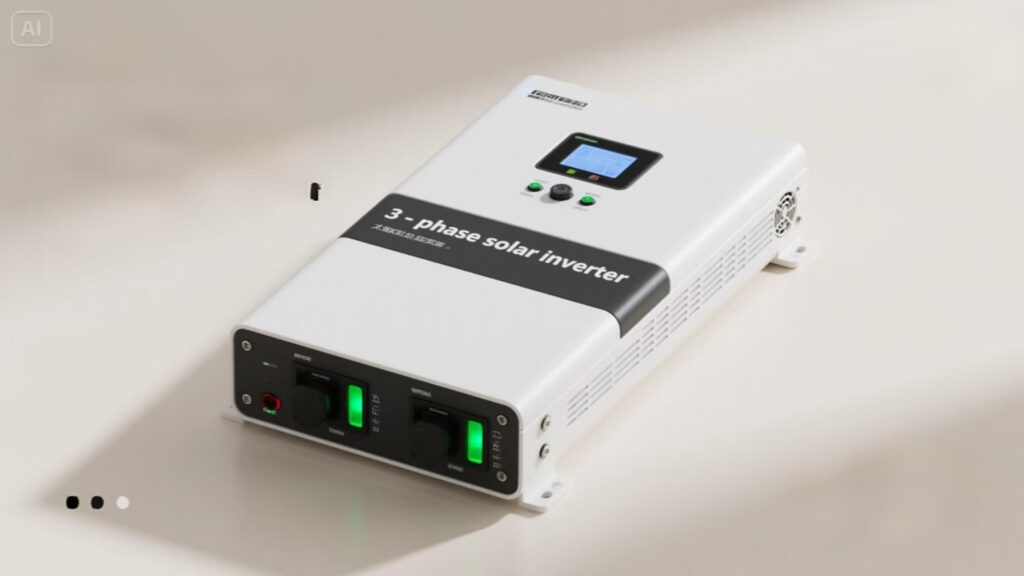

Hybrid Solar Inverters (3-phase)
Why Choose Our 3-Phase Inverters?
Harness efficiency with our state-of-the-art 3-Phase Inverters, suitable for both commercial and industrial use. These inverters ensure optimal solar energy usage and allow for smooth switching to grid power when necessary, guaranteeing uninterrupted electricity supply.
Candtech’s 3-Phase Solar Inverters deliver industrial-grade power conversion solutions designed specifically for large commercial installations, manufacturing facilities, and utility-scale projects. These high-performance inverters combine robust design with advanced grid management capabilities, making them the preferred choice for professional installers, commercial developers, and wholesale distributors worldwide.
Key Features and Benefits:
– **High Power Density**: Compact design delivers maximum power in minimal space
– **Advanced Grid Support**: Reactive power control, voltage regulation, and frequency response capabilities
– **Intelligent Monitoring**: Comprehensive data collection and analysis through our commercial monitoring platform
– **Multiple MPPT Channels**: Independent MPPT tracking for optimal energy harvest across diverse installation conditions
– **Wide Input Voltage Range**: Flexible string configuration options for system designers
– **Enhanced Reliability**: Robust design with industrial-grade components for extended operational life
– **Easy Installation**: Pre-configured settings and intuitive interface reduce commissioning time
– **Comprehensive Protection**: Advanced safeguards against environmental and electrical anomalies
– **Low Maintenance Design**: Reduced service requirements and operational costs
– **Global Grid Compliance**: Pre-programmed grid codes for international markets
## Application Scenarios
– **Large Commercial Buildings**: Office complexes, shopping centers, and institutional facilities
– **Manufacturing Facilities**: Factories and production plants with high energy demands
– **Warehouses and Distribution Centers**: Large-scale logistics operations
– **Educational Campuses**: Universities and school districts with multiple buildings
– **Healthcare Facilities**: Hospitals and medical centers with critical power requirements
– **Agricultural Operations**: Large farms and processing facilities
– **Water Treatment Plants**: Municipal and industrial water processing facilities
– **Utility-Scale Projects**: Smaller utility solar farms and commercial solar parks
Some models parameter showed for reference
Model | TPI-10K | TPI-20K | TPI-30K | TPI-50K |
Max. DC Input Power | 15kW | 30kW | 45kW | 75kW |
Max. DC Input Voltage | 1000V | 1000V | 1000V | 1000V |
MPPT Voltage Range | 200-850V | 200-850V | 200-850V | 200-850V |
Start-up Voltage | 250V | 250V | 250V | 250V |
Number of MPPTs | 2 | 3 | 4 | 5 |
Max. Input Current per MPPT | 25A | 25A | 25A | 25A |
Max. Short Circuit Current | 32A | 32A | 32A | 32A |
Rated AC Output Power | 10kW | 20kW | 30kW | 50kW |
Max. AC Output Power | 11kW | 22kW | 33kW | 55kW |
Rated AC Voltage | 380/400/415V | 380/400/415V | 380/400/415V | 380/400/415V |
AC Voltage Range | 320-480V | 320-480V | 320-480V | 320-480V |
Rated Grid Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Grid Frequency Range | 45-55Hz/55-65Hz | 45-55Hz/55-65Hz | 45-55Hz/55-65Hz | 45-55Hz/55-65Hz |
Rated AC Current | 15.2A | 30.4A | 45.6A | 76A |
Max. AC Current | 16.7A | 33.4A | 50.1A | 83.6A |
Power Factor | >0.99 (adjustable 0.8 leading to 0.8 lagging) | >0.99 (adjustable 0.8 leading to 0.8 lagging) | >0.99 (adjustable 0.8 leading to 0.8 lagging) | >0.99 (adjustable 0.8 leading to 0.8 lagging) |
THD | <3% | <3% | <3% | <3% |
Max. Efficiency | 98.30% | 98.50% | 98.60% | 98.80% |
European Efficiency | 98.00% | 98.20% | 98.30% | 98.50% |
MPPT Efficiency | 99.00% | 99% | 99% | 99% |
Protection Degree | IP65 | IP65 | IP65 | IP65 |
Night Power Consumption | <1W | <1W | <1W | <1W |
| Operating Temperature | -25°C to +60°C | -25°C to +60°C | -25°C to +60°C | -25°C to +60°C |
Cooling Method | Intelligent Fan | Intelligent Fan | Intelligent Fan | Intelligent Fan |
Max. Operating Altitude | 4000m | 4000m | 4000m | 4000m |
Dimensions (W×H×D) | 530×700×230mm | 580×740×270mm | 650×800×300mm | 700×850×320mm |
Weight | 45kg | 58kg | 72kg | 85kg |
Display | LCD + LED | LCD + LED | LCD + LED | LCD + LED |
Communication | RS485/Wi-Fi/GPRS/4G/LAN | RS485/Wi-Fi/GPRS/4G/LAN | RS485/Wi-Fi/GPRS/4G/LAN | RS485/Wi-Fi/GPRS/4G/LAN |
Warranty | 10 Years | 10 Years | 10 Years | 10 Years |
